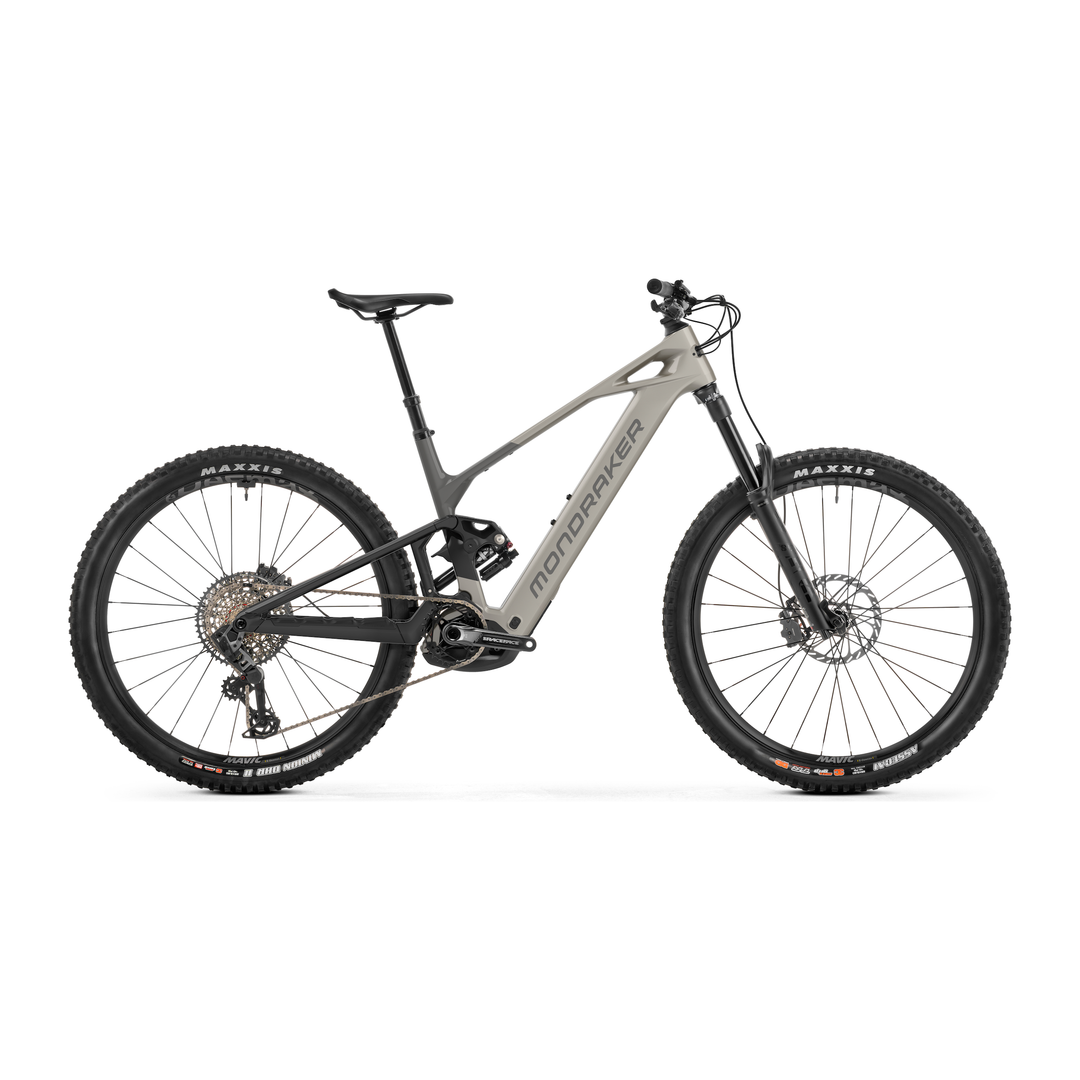

mondraker kinderfahrrad 2026 Mondraker Crafty Carbon R

mondraker kinderfahrrad 2026 Mondraker Crafty Carbon RThis bike ships for FREE within the continental U. S. Plus, FREE Tubeless Setup (Just ask!) Crafty Carbon R is your ticket to ride Mondrakers best range of ebikes ever. The thrill of a Crafty Carbon isnt just about the power, travel or range. No ones denying this lineup is a true statement of performance: Bosch CX Gen5 motor, a removable 800Wh battery, and now a seamlessly integrated Kiox 400 display flush mounted in the top tube. FEATURES SPECS

This bike ships for FREE within the continental U.S.

Plus, FREE Tubeless Setup (Just ask!)

Crafty Carbon R is your ticket to ride Mondraker’s best range of ebikes ever. The thrill of a Crafty Carbon isn’t just about the power, travel or range. No one’s denying this lineup is a true statement of performance: Bosch CX Gen5 motor, a removable 800Wh battery, and now a seamlessly integrated Kiox 400 display flush-mounted in the top tube.

FEATURES:

• Mondraker's Forward Geometry improves safety and confidence when descending at speed, combined with sharper, more direct handling and better tracking; plus, more stability on technical climbs and rough terrain, combined with better grip and improved control.
• Mondraker's Proprietary ZERO is a virtual pivot suspension system with an exclusive dual-link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledged and astounding feature of every Mondraker full suspension bike.
• Stealth Carbon is the most advanced carbon fiber development and optimization technology in the Mondraker range. This constantly developing technology brings all the experience gained in making aluminium frames to the top of the range carbon fiber to meet the same innovation, maximum quality, minimum weight, and strength requirements. Carbon fiber layers’ placement is a crucial technique with specific positioning and direction of the different quality fibres for each bike type and model. The result is a frame with the best strength / structural rigidity / trail buzz absorption/lightness ratio, exceptional reliability, and a very attractive and unique 100% Mondraker look.

SPECS:

• Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
• Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock Settings: CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
• Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
• Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
• Saddle: Ergon SM-10
• Front Brake: SRAM Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Rear Brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Brake Lever: Sram Maven Base, SwingLink and lever pivot bushings, tools-free reach adjust
• Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double butted, contactless lacing
• Front Hub: Mavic, Boost 15x110mm, IS 6 bolts
• Rear Hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
• Front Tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear Tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Crankset: Race Face Aeffect-R ebike, 160mm
• Chainring: Sram Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear Derrailleur: Sram S1000 Eagle AXS T-Type, 12s
• Shift Levers: Sram Eagle AXS Pod MMX, 12s
• Casette: Sram XS-1270, 10-52T, T-Type, 12s
• Derailleur Hanger: Sram UDH
• Display: Kiox 400 / Bosch Mini Remote
• Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800Wh
