Description
mini dc gear motor GA12-N20 Geared Mini DC Motor – Sunhokey Electronics Co., LtdDescription This is a DC Mini Metal Gear Motor, ideal for making robots. Light weight, high torque and low RPM. Fine craftsmanship, durable, not easy to wear. With excellent stall characteristics, can climb hills easily. You can also easily mount a wheel on the motors output shaft. Widely used on a boat, model car, robotic, home appliances, linear motion control. General Specification: Model: GA12 N20. Rated Voltage: 3~12V. Revolving Speed : 100RPM @
Description

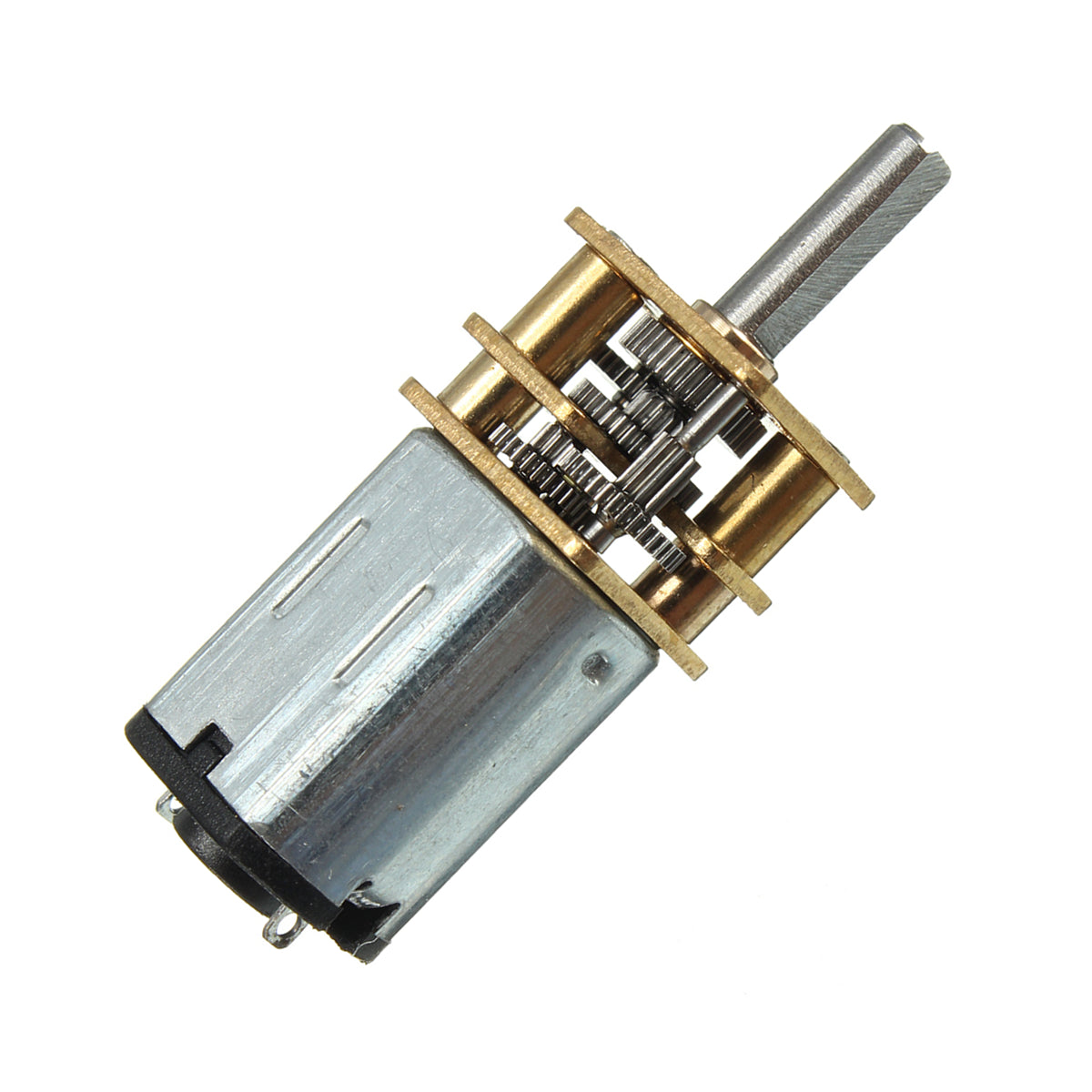

This is a DC Mini Metal Gear Motor, ideal for making robots. Light weight, high torque and low RPM. Fine craftsmanship, durable, not easy to wear. With excellent stall characteristics, can climb hills easily. You can also easily mount a wheel on the motor’s output shaft. Widely used on a boat, model car, robotic, home appliances, linear motion control.
General Specification:
- Model: GA12-N20.
- Rated Voltage: 3~12V.
- Revolving Speed : 100RPM @ 6V.
- Load Speed: 80RPM.
- Rated Torque: 2 kg.cm.
- Stall Torque: 16 kg.cm.
- Rated Current: 0.07A.
- Stall Current: 1A.
- Reduction Ratio: 1:10.
- Total Length: 34mm.
- Gear Material: Full Metal.
- Gearbox Size : 15 x 12 x 10mm (L*W*H).
- Shaft Size : ∅3 x 10mm(D*L).
- Net Weight: 10g
- DATASHEET
