Description
fpv video goggles 5.8GHz FPV Kit System Diversity Goggles 1500TVL CCD Camera 800mW Video TransmitterConvenient DIY Installation: The system is designed for quick and hassle free installation. You don't need any advanced technical skills or tools to set it up. Simply follow the provided instructions, and you'll be up and running in no time, allowing you to focus on enjoying your FPV adventures. Diversity FPV Goggles Features: Small size and lightweight Low power consumption at 360 400mA Double antenna reception Supports RaceBand 40 channels with auto
Convenient DIY Installation: The system is designed for quick and hassle-free installation. You don't need any advanced technical skills or tools to set it up. Simply follow the provided instructions, and you'll be up and running in no time, allowing you to focus on enjoying your FPV adventures.
Diversity FPV Goggles Features:
- Small size and lightweight
- Low power consumption at 360-400mA
- Double antenna reception
- Supports RaceBand 40-channels with auto search
- High-brightness LCD screen
- Built-in 3.7V 1200mAh battery
- USB charging interface
- Supports external video signal input
- Supports AV signal output for using a DVR
Diversity FPV Goggles Specifications:
- Dimensions: 13.5x13.2cm
- Resolution: 480x320
- Display Ratio: 16:9
- Antenna: 2x RP-SMA Male
- Power Adapter: DC5V/1A USB charging
Video Transmitter Specifications:
- Model: VTX20-600
- Input voltage: 7-26V(2-6S)
- BEC: 5V
- Number of channels: 40CH
- Transmitting power: PIT/25/100/200/400/800mW
- Interface: MMCX
- Size: 36x36mm
- Installation hole distance: 30.5*30.5mm M3
- Weight: 6.8g
- Support IRC power and channel adjustment
Mini A23 1500TVL CCD HD FPV Camera Specifications:
- Model: MINI A23 FPV cameras
- Lmage Sensor: 1/3ï¼€¡Mg SUPER HAD II CCD
- Horizotal Resoulution: D1 960H
- Lens: 2.1mm
- Signal System: PAL/NTSC (OSD Internal adjustableï¼€ Degrees
- S/N Ratio: ＞60Db(AGC OFF)
- Electronic Shutter Speed: PAL: 1/50-100.000, NTSC:1/60-100,000
- Auto Gain Control(AGC): LOW/MIDDLE/HIGH
- Backlight compensation(BLC): YES
- Min illumination: 0.001Lux/1.2F
- WDR D-WDR DNR 3DNR Day/Night
- Auto/Color/B*W
- Power: DC 5V-30V
- Net weight: 15g
- Dimensions: 22mm*25mm*28mm
Mini A23 Camera OSD Specifications:
- Exposure: Brightness/exposure mode/gain
- White balance: Automatic tracking white balance
- Day and night mode: Internal automatic/color mode/black and white mode
- Video Settings: Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamic
- Language: Chinese/English/German/Italian/Russian
- Restore the factory Settings: OK
- Save and exit: OK

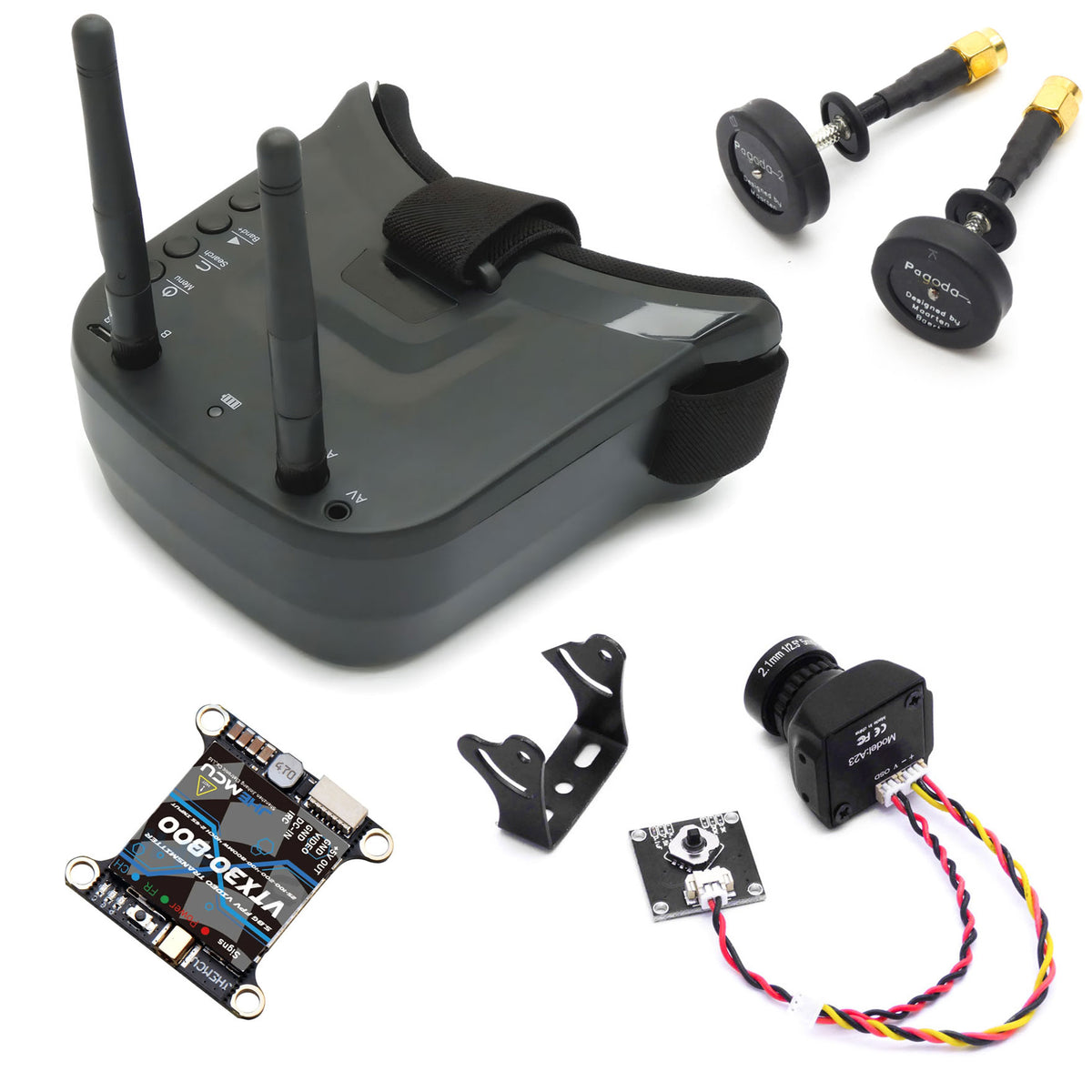

Package Contents:
- 1x Diversity FPV Goggles w/ Integrated Power
- 1x 800mW Video Transmitter
- 1x A23 1500TVL HD CCD Camera
- 1x Wiring Harness
- 2x 5.8GHz Receiving Antennas
- 1x 5.8GHz Transmitting Antenna
